Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Chinz
  • Model Number: GYJ
  • Application: Liquid
  • Type: Extractor
  • After-sales Service Provided: Engineers available to service machinery overseas
  • extraction machine Material: SUS304 or SUS316L
  • Agitator: With agitator
  • Heating source: Steam or electric
  • Concentrator: With single-effect concentrator
  • Filter: With filter

Packaging & Delivery

Packaging Details strong seaworthy wooden case for extraction machine
Delivery Time In a month

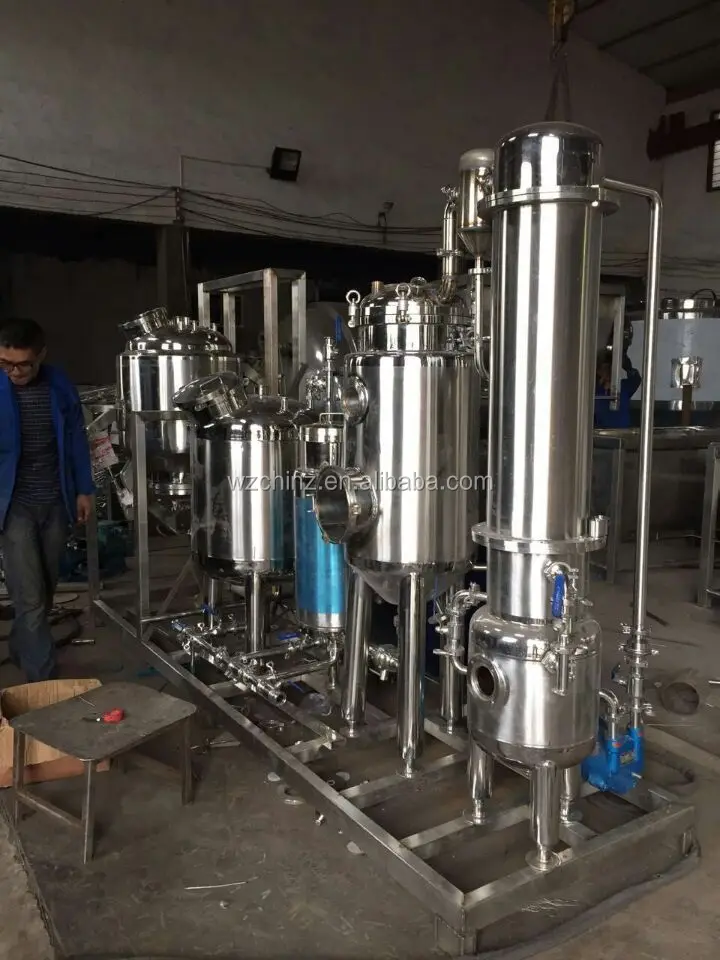

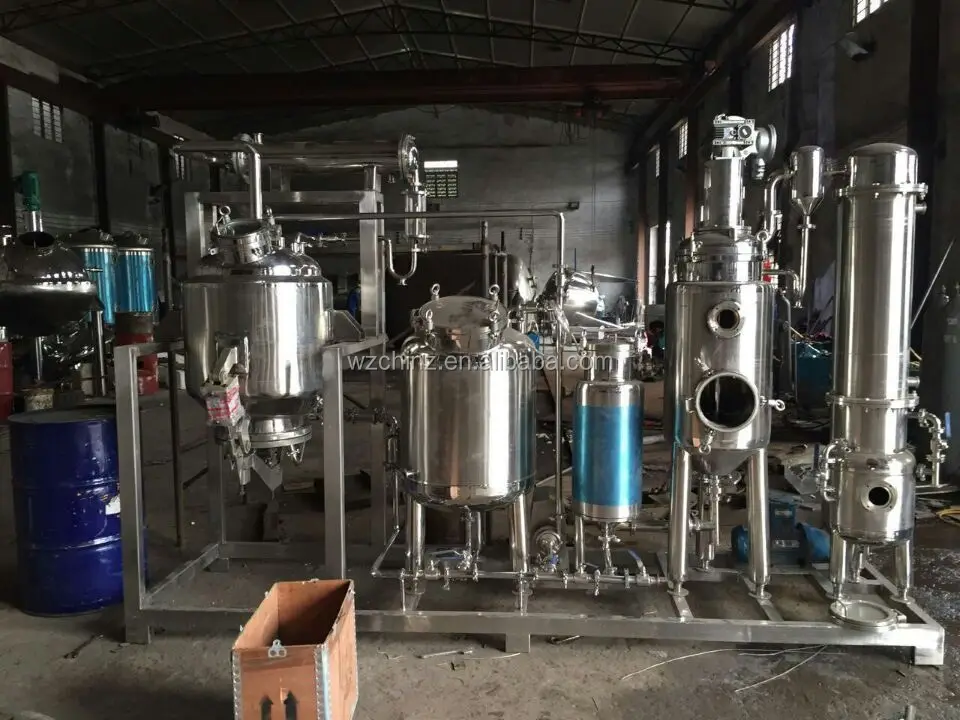

GYJ series multifunctional miniature extraction and concentration machine





Product Description

 Use:

This equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical.

                                                                                                                   Add to my favorite







Feature:
1.This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricty.


2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.

3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.

Technology and parameter

Model

GYJ-50

GYJ-100

GYJ-200

GYJ-300

GYJ-500

Volume

50

100

200

300

500

Evaporation capacity (kg/h)

20

50

70

100

200

Motor power(KW)

2.7

2.7

2.7

3.5

3.5

Steam consumption(kg/h)

25

60

90

120

250

System vacuum (MPa)

-0.085

-0.085

-0.085

-0.085

-0.085

Pressure of jacket(MPa)

0.09~0.3

0.09~0.3

0.09~0.3

0.09~0.3

0.09~0.3

Compressed air (MPa)

0.5~0.6

0.5~0.6

0.5~0.6

0.5~0.6

0.5~0.6

Evaporation temperature(°C)

50~90

50~90

50~90

50~90

50~90



Packaging & Shipping

  Strong seaworthy wooden case/wooden support/ Iron support

♦ LCL (Less container load) Pack by waterproof plastic film first,then pack by plywood

♦ FCL(Full container load)  Fixed on wooden support by steel wire

 If large tank, pack by waterproof plastic film first, then fixed on wooden support by steel wire.





FAQ



1.Q:  What's the solvent?

     A:  Water and alcohol.

2. Q:  What's the extraction time of per batch herb?
    A :  One batch herb can extract 2-3times per its features, and each time may take around 3-4hours.

3. Q:  This machine need what kind of auxiliary equipment ?

     A:   The herb multifunction extraction machine needs steam generator ( for heating), cooling water tower ( for condensateion/cooling), air compresor ( for pneumatic slag discharge door), if you like, we can make quotation include the air compressor, and introduce you the good quality cooling water tower supplier.



Dear, If you have any questions, pls feel free to  anytime.
