Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Chinz
  • Model Number: GYJ
  • Application: Chinese herbas and other botanical
  • Type: Extraction and concentration series
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material:SS316L / SS304: Volume:50L~500L
  • System vacuum (MPa): -0.085: Pressure of jacket(MPa): 0.09~0.3
  • Compressed air (MPa):0.5~0.6: Evaporation temperature(°C):50~90

Packaging & Delivery

Packaging Details Packed in waterproof cloth first, then packed in wooden cases
Delivery Time Shipped in 30 days after payment

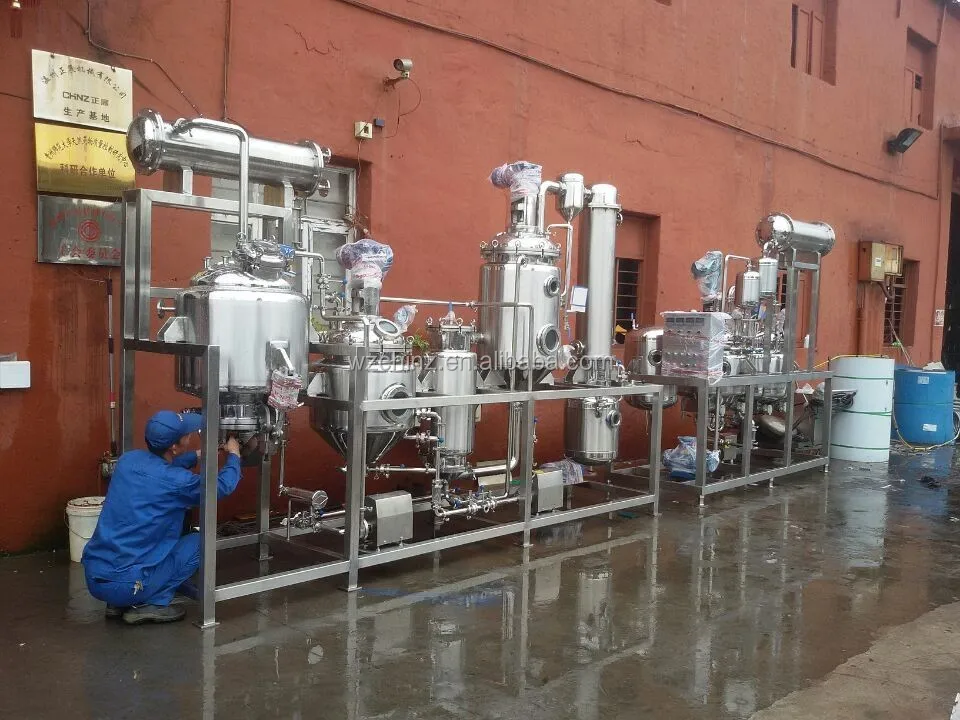

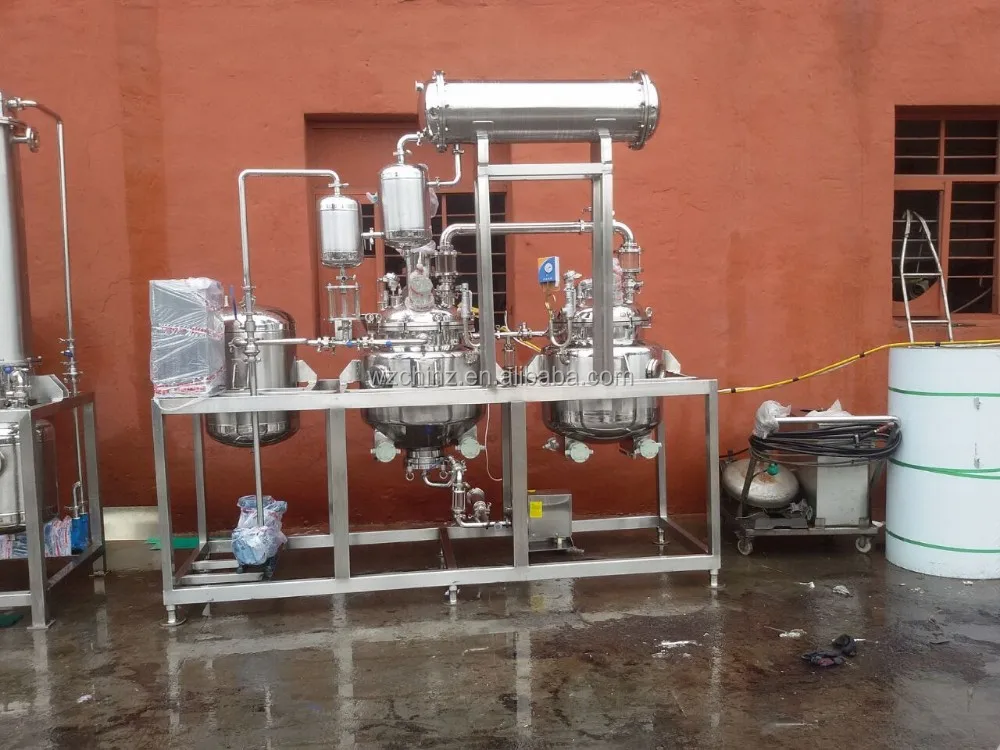

100L steam heating Miniature extraction and concentration unit for herb



Product Description

 Usage

This equipment is suitable for extracting and concentrating the effective component from Chinese herbas and other botanical.



Feature
1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricty.


2. This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.

3. The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

4. This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.

Technology and parameter

Model

GYJ-50

GYJ-100

GYJ-200

GYJ-300

GYJ-500

Volume (L)

50

100

200

300

500

Evaporation capacity (kg/h)

20

50

70

100

200

Motor power(KW)

2.7

2.7

2.7

3.5

3.5

Steam consumption(kg/h)

25

60

90

120

250

System vacuum (MPa)

-0.085

-0.085

-0.085

-0.085

-0.085

Pressure of jacket(MPa)

0.09~0.3

0.09~0.3

0.09~0.3

0.09~0.3

0.09~0.3

Compressed air (MPa)

0.5~0.6

0.5~0.6

0.5~0.6

0.5~0.6

0.5~0.6

Evaporation temperature(°C)

50~90

50~90

50~90

50~90

50~90








Packaging & Shipping

   Strong seaworthy wooden case/wooden support/ Iron support
